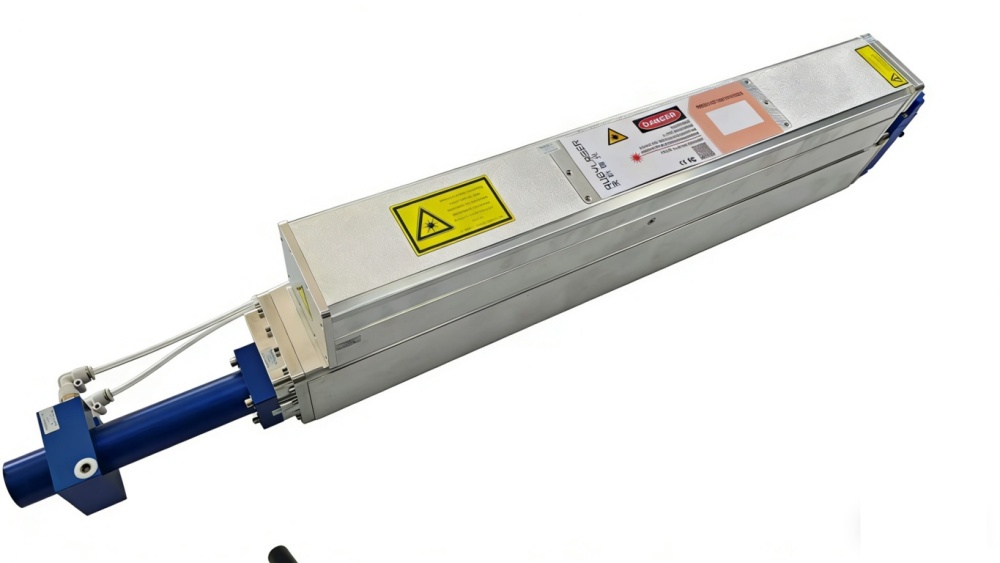

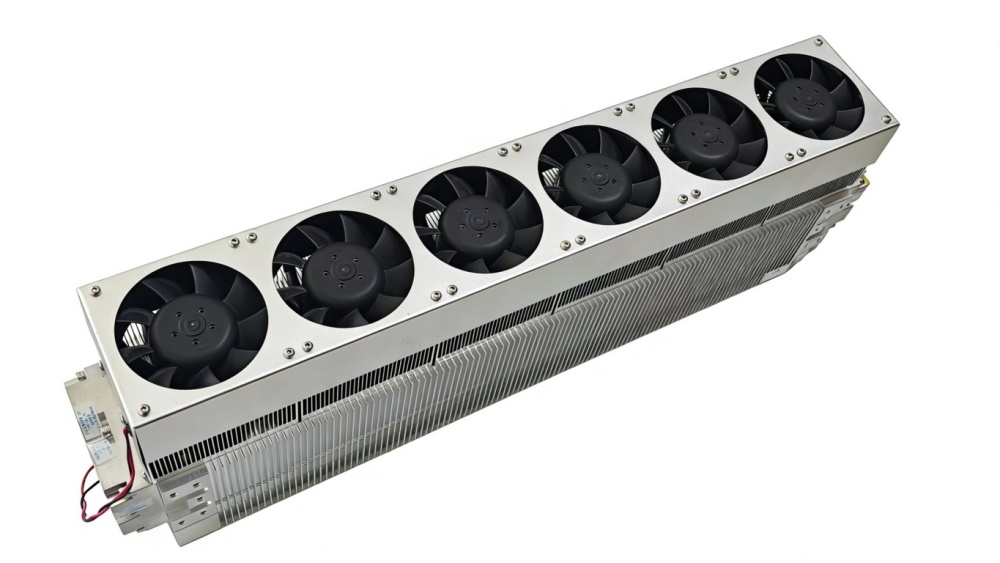

S-10L/15L 120/150W RF CO2 laser tube

1. It adopts an integrated beam shaping system and outputs quasi fundamental mode beams 2. It adopts a fully metal sealed off design and is maintenance free

3. It adopts an integrated design and is easy to install in laser equipment, which can be suitable for various industrial environments.

Order online

S-10L/15L 120/150W RF CO2 laser tube

1.Product Feature:

1. It adopts an integrated beam shaping system and outputs quasi fundamental mode beams 2. It adopts a fully metal sealed off design and is maintenance free

3. It adopts an integrated design and is easy to install in laser equipment, which can be suitable for various industrial environments.

2. Application industry:

Tire marking, 3D product cutting, and insulation cup marking This series of laser tubes has been widely used in wood carving, acrylic carving and cutting, greeting card making, leather carving cutting, clothing accessory reflective film cutting and other fields.

3.Technical specification:

Model

Wavelength

Laser power

Power stability

Beam quality M²

Beam Diameter（1/e²)

Beam divergence angle(full angle)

Polarization

Modulation frequency

S-15L

10.6µm

150W

Less than ±10%

Less than 1.5

2.3±0.2mm

Less than

8.0mrad

水平线偏振，>100:1

Horizontal linear polarization,>100:1

0-100kHz

S-10L

10.6µm

120W

Less than ±10%

Less than 1.5

2.3±0.2mm

Less than

8.0mrad

Duty cycle range

Electrical input

Cooling method

Size

Weight

Working shell temperature

Ambient Temperature

Humidity

Ambient temperature

0-60%

DC48V/60A

Water-cooling

985mm×92mm×171mm

16.0kg

Less than 50℃(122 °F)

Less than 15~40℃(59~104 °F)

Non-condensing

-10~60℃(14~140 °F)

1) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%;

2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle.
